GroundTrak PRO
GroundTrak PRO is the heavy-duty version of our trusted GroundTrak mat, designed to deliver exceptional temporary ground protection in the most demanding environments.
Manufactured from high-quality High-Density Polyethylene (HDPE), each mat measures 1200mm x 2400mm x 12.7mm thick, supporting loads of up to 60 tonnes, depending on the ground conditions. GroundTrak PRO is engineered for strength and ease of use, featuring a dual-sided design: one side with
a 4-bar chequer plate surface for pedestrian use, and the other with a 1-bar chequer plate for vehicle use - making it ideal for a wide range of applications.
GroundTrak PRO is lightweight and features integrated handles for quick, seamless lifting and positioning, while providing a safe, stable, and secure surface for heavy machinery, large vehicles, and high-impact areas. In addition to hand holes for easy lifting, each mat also features corner and side holes, designed for use with our two-way or four-way connectors. These securely attach the mats together, allowing you to create custom-sized spaces, roadways, or larger flooring areas.
Its non-slip surface pattern ensures maximum grip and durability, even in the most challenging conditions.Waterproof and resistant to oils and chemicals, GroundTrak PRO is also completely maintenance-free, delivering long-lasting, reliable performance time and time again.
Slip resistant 3
Excellent slip resistance to level 3
Wear resistant 3
Excellent wear resistance to level 3, suitable for heavy footfall
Chemical resistant
Resistant for chemicals and oils
Connectable
Mats are connectable to create any shape or size
Disability friendly
Suitable for wheelchairs
Dry area
Suitable for use in dry areas
Wet area
Suitable for use in wet environments
Heavy area
Suitable for use in heavy duty areas
Wheeled area
Suitable for trolleys and wheeled trucks
Impact resistant
Able to resist sudden force or shock
Environmentally friendly
Made from recycled materials
60t
Supports loads up to 60 tonnes
Features
- Heavy-duty load capacity: Supports up to 60 tonnes, making it ideal for heavy machinery and vehicles
- Dual-sided design: One side with a 4-bar chequer plate surface for pedestrian use, and the other with a 1-bar chequer plate for vehicle use
- Durable HDPE construction: Manufactured from high-quality High-Density Polyethylene (HDPE) for long-lasting performance
- Lightweight and easy to handle: Designed for effortless 2-man lifting and positioning for easy transportation
- Integrated hand holes: Allow for quick and efficient handling on-site

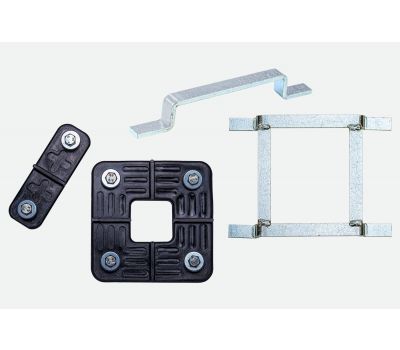

- Corner connection points: Pre-drilled holes for 2-way or 4-way connectors, ensuring a secure, seamless fit for larger areas
- Non-slip surface chequer plate pattern: Provides maximum grip and stability in all conditions
- Weather and chemical resistant: Waterproof and resistant to oils, chemicals, and extreme conditions
- Maintenance-free: Built for long-term use
- Improved health and safety: Helps avoid health and safety issues caused by poor ground conditions, providing a stable and secure surface for workers and machinery
- Material: 100% recycled HDPE and 100% recyclable
- Overall height: 12.7mm
Technical Specification
- Physical properties
- Density: 0.96 g/cm³ (ASTM D792)
- Water absorption: <0.10% (ASTM D570)
- Mechanical properties
- Hardness: 65 Shore D (ASTM D2240)
- Tensile strength at yield 23°C: 4000 psi (ASTM D638)
- Tensile modulus: 217000 psi (ASTM D638)
- Elongation at break: >700% (ASTM D638)
- Flexural strength: 210000 psi (ASTM D790)
- Compressive strength: 1500 psi (ASTM D695)
- Coefficient of friction, dynamic: 0.20–0.29
- Izod impact, notched: 3.5 ft-lb/in (ASTM D256)
- Electrical properties
- Surface resistivity: >10¹⁴ Ω/cm (ASTM D257)
- Dielectric constant: 2.4 1MHz (ASTM D150)
- Temperature resistance
- Service temperature: -73°C to 82°C
- Melting point: 131°C (ASTM D3418)
- Vicat softening point: 125°C (ASTM D1525)
- Heat deflection temperature: 77°C (ASTM D648)
- Brittleness Temperature: -75°C (ASTM D746)
- Fire: UL94 HB
Applications
Perfect for a wide range of applications, including groundwork cover, construction sites, industrial flooring, utilities and infrastructure maintenance, temporary roadways and parking solutions, pedestrian walkways, festival and outdoor event flooring (including markets, trade shows, outdoor recreation, sports events, outdoor weddings, special events, camping and outdoor stages), lawn and landscape protection, kerb, tarmac and block paving protection, heritage sites and eco-sensitive areas, sports field and golf course maintenance, emergency response and disaster recovery, and military and defence operations. Please note, the ground beneath the matting must be structurally sound and free from significant depressions, such as potholes, as these can cause the matting to crack or become damaged.
Variants and Sizes
Code | Description | Weight (kgs) |
|---|---|---|
| GP4896BL | GroundTrak PRO 1200mm x 2400mm x 12.7mm | 0.1 |
